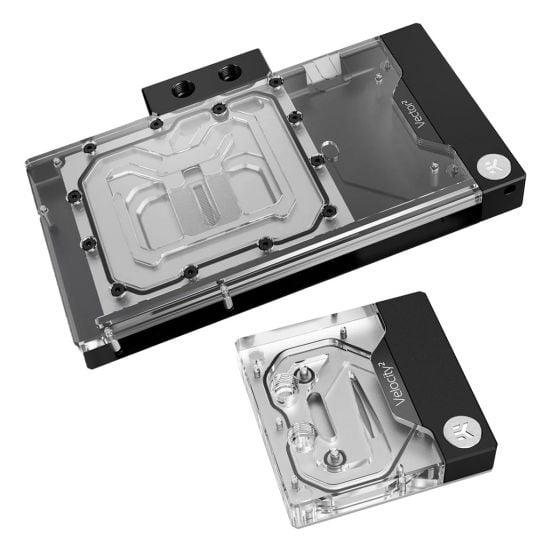

EKWB EK-Quantum Velocity 2 CPU Water Block (LGA 1700) and EK-Quantum Vector 2 FE RTX 4090 GPU Water Block Bundle, Nickel + Plexi

This bundle includes the Velocity 2 LGA 1700 CPU water block and the Vector 2 FE RTX 4090 GPU Water Block.

EK-Quantum Velocity 2 D-RGB - 1700 is the new high-performance premium quality CPU water block for the new Intel socket LGA 1700-based platform. It features a next-generation cooling engine that is socket-specific. This CPU water block is EK-Matrix7 compliant and is mounted via a patent-pending EK Exact Mount system.

OptiFlow Cooling Engine
EK-Quantum Velocity 2 series CPU water blocks embed the next generation cooling engine named OptiFlow. They use a specific combination of mounting pressure and coldplate geometry tailored for the IHS and die layout of Intel LGA 1700 socket processors. Low hydraulic flow restriction enables these products to be used in setups using weaker water pumps or lower pump speeds for added silent operation, while still achieving top performance! Th? lathe-turned coldplate is made with precision to effectively cover the IHS and put pressure on the die area.

The Velocity 2 series water blocks cover the entirety of the socket while conforming to Intel guidelines about safe zones.

EK-Matrix7
The EK-Quantum Velocity 2 is an EK-Matrix7 compatible product. The EK-Matrix7, a product raster that is bound to set a new standard. EK is adding a new dimension to PC liquid cooling, where the height of products and the distance between ports are managed by increments of 7mm. This improves product alignment and reduces the time spent planning the loop and bending tubes. Through the meticulous planning of our products, building a liquid-cooled PC becomes easy and fun, just like toy bricks.

EK-Quantum Velocity 2 Patent-pending Mounting
EK-Exact Mount is a patent-pending mounting system designed and engineered by EK in the search for an easy-to-use, but aesthetically pleasing mounting mechanism. It's made up of only three pieces - backplate, mounting screws, and the water block itself. It's screwed in from the back allowing for a seamless and clean front aesthetic without any screws disrupting the harmony of shape. The system uses pre-tensioned springs concealed in the water block top, so with just a few turns of the thumb-nuts, the installation is finished, and you get the exact mounting pressure needed.

EK-Quantum Velocity 2 D-RGB LED Lighting
This product is compatible with all popular addressable RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB header.

Technical specifications:
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground)

CPU socket compatibility:
- Intel LGA 1700
-Raptor Lake Intel 13th Gen Core CPUs and the Z790 platform

High-Performance GPU Cooling

The new Vector 2 water blocks effortlessly solve the issue of excessive heat generation during high load, on the GPU core, voltage regulation module, and the GDDR6X VRAM of the Founders Edition RTX 4090 Graphic cards.

Backplate Included

The package now contains:

• A high-performance GPU water block of the latest generation
• Premium quality CNC-machined backplate
• Mounting mechanism
• Thermal paste
• Thermal pads
• Custom-made Single Slot GPU Bracket
• GPU and PCI power cable release tool

A black, full coverage backplate is included with the GPU water block. Its distinctive L-shaped profile encloses the entire GPU while, at the same time, increasing the cooling surface area. The backplate also comes with pre-installed captive backplate screws that simplify the installation. They ensure that the correct size screw is always used where it is needed.

Enclosed:
- EK-Quantum Velocity 2 CPU water block
- EK-Quantum Vector 2 FE RTX 4090 GPU Water Block
- Torx T7 key
- Thermal grease Thermal Grizzly Hydronaut (1g)
