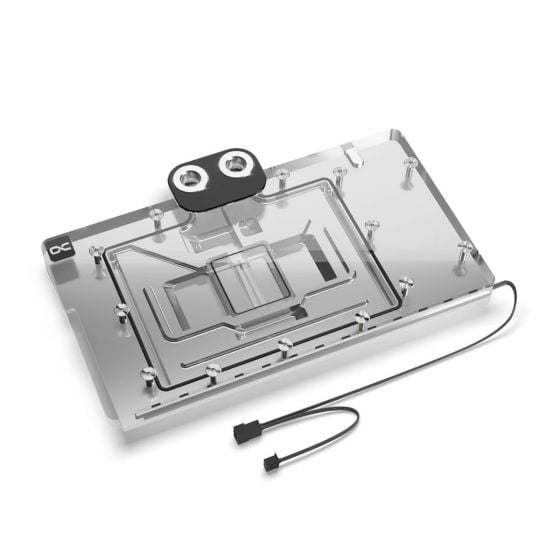

Alphacool Core Geforce RTX 4090 Master V.2 GPU Water Block with Backplate

Alphacool's Core product series is characterized by high quality, outstanding performance and a uniform and functional design language.

The copper cooler, which is milled from a single piece of copper together with the terminal terminal, is the core of this cooler. The fine workmanship paired with the hard and resistant chrome plating of the entire copper cooler meets the highest quality standards. The G1/4" brass threads, which are left in chrome and integrated on both sides, stand out visually from the terminal and are one of the core points of the new design language that will be evident in all products in the Core series.

The aluminum backplate, which is adapted to the design, forms a unit together with the terminal and impresses with a clear and homogeneous look on the back of the cooler. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly and well.

The technical development can be seen in the water supply to the jet plate as well as in the optimization of the jet plate itself. This was completely redesigned based on many simulations and practical tests in collaboration with board partners. The fin thickness and spacing were changed, the cooling surface was increased and the water flow was optimized to the core components with the greatest heat dissipation. The included special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.

Compatibility:
Note: This version (V.2) of the cooler is compatible with PCB Layout V.1.1
- Gigabyte AORUS GeForce RTX 4090 Master 24G, 24GB GDDR6X (GV-N4090AORUS M-24GD)
- Gigabyte GeForce RTX 4090 Gaming OC 24G, 24GB GDDR6X (GV-N4090GAMING OC-24GD)

Technical data cooler
Dimensions (L x W x H): 235.80 x 152.96 x 31.90mm
Radiator base material: chrome plated copper
Radiator top material: Acrylic
Connections: 4 x G1/4"
Thick radiator base: 11.3mm
Thick cooling fins: 0.4mm
Distance between cooling fins: 0.4mm
Lighting: digital aRGB LEDs
Power connection digital aRGB LEDs: 3-pin JST
Voltage digital aRGB LEDs: 5V
Number of digital aRGB LEDs: 13
Color: transparent

Technical data backplate
Technical data backplateDimensions (L x W x H): 235.80 x 129.96 x 5mm
Material: aluminum
Color: black
