Watercool HEATKILLER IV PRO CPU Water Block and LGA 1700 Heavy Backplate Bundle, Pure Copper

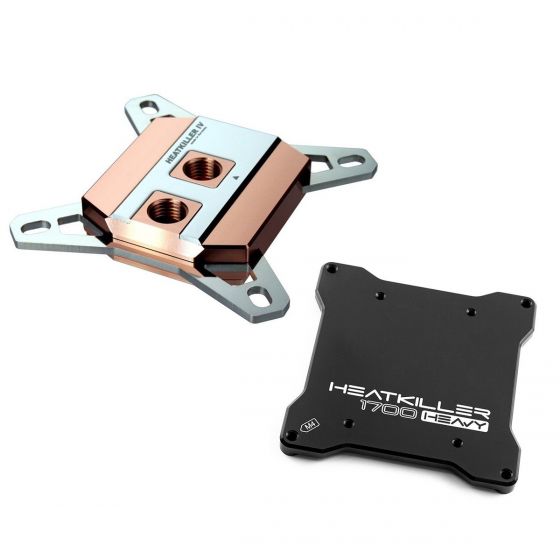

This bundle includes the HEATKILLER IV PRO CPU water block and the LGA 1700 Heavy Backplate.

Specifications:
Material: nickel-plated copper (bottom plate), polished stainless steel (brackets), nickel-plated brass ( Easy-Mount-System)
Dimensions (L x W x H): 66 x 59 x 17 mm
Threads: 2x G ¼ inch
Thread distance: 25 mm
Socket compatibility INTEL: 1150, 1200 and 1700

Massive HEAVY backplate for the current Intel Alder Lake LGA 1700 socket generation, CNC milled from 7mm thick aluminum . The HEAVY backplate prevents socket bending and therefore provides a more consistent contact pressure for maximum cooling performance. The included 0.8mm washer mod further optimizes the experience.

The insulated aluminium backplate can be easily mounted directly to the socket using integrated UNC threads. Additionally the case should have a recess in the tray in the area of the socket due to the thickness of the backplate. By the way, the backplate can also be used with coolers from other manufacturers. The M4 female threads provide an excellent compatibility.

Technical data:
Dimensions (length x width x height ): 87 x 87 x 7mm
Material : Aluminum
Compatible : Socket 1700 Alder Lake,
Weight : 110gr
